How to Build a DIY Gas Grill Island in 10 Steps

A finished DIY gas grill island runs $2,000–$5,000 for a basic build and demands ten specific stages from design sketch to utility hookup.

Most weekend builders get the framing right and still fail at the same hidden step: the 1-inch air gap between metal studs and the grill shell, without which the surrounding structure cooks itself soft across two seasons.

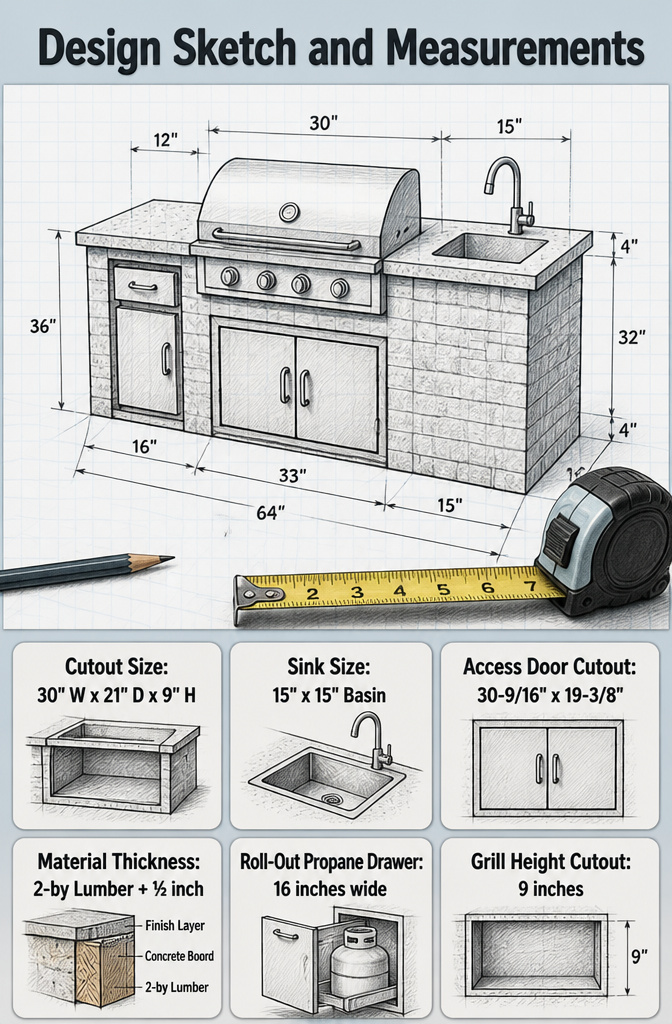

1. Sketch the Design and Measure Twice

A standard built-in gas grill needs a cutout of 30" W x 21" D x 9" H, which sounds modest until you map it against the full island footprint. That 30-inch width is just the cavity.

The surround, countertop overhang, and side panels add inches in every direction, and the material thickness of your framing and sheathing compounds fast.

Two-by lumber is actually 1½ inches thick, concrete board adds another ½ inch, and your finish layer, whether tile or stucco, tacks on more.

Skip that math and your grill either perches proud of the surface or drops too deep to open the lid without hitting the counter behind it.

I drew my first island on graph paper with each square equal to three inches, then spent an evening with a tape measure pacing the patio. The sink I wanted, a 15" x 15" basin, needed a 14½" x 14½" cutout.

The access door and drawer combo measured 33" x 22" overall with a cutout of 30-9/16" x 19-3/8". Those fractional inches matter when you are stacking components shoulder to shoulder.

The roll-out propane drawer, at 16 inches wide, had to sit where the framing could hide the tank without stealing knee room from the prep counter opposite.

Material thickness also governs appliance placement vertically. A grill rated for a 9-inch height cutout assumes your support shelf sits exactly at the right elevation.

Build that shelf from two-by material and your grill frame rides 1½ inches high. Account for it in the leg heights or live with a lid that catches the breeze wrong.

2. Frame With Pressure-Treated Lumber

Pressure-treated lumber is the right starting point for an outdoor frame because the chemical treatment actually resists rot and insects, not just surface moisture.

Pressure-treated wood is still combustible, so any framing left exposed near the grill body is a code issue rather than a style choice.

The practical move is building the perimeter walls and countertop support on standard 16-inch centers, then leaving a precise cut-out where the grill head slides in.

I skipped double top plates on my first island and regretted it within a season. The countertop load, especially if you go with concrete or granite, wants to twist a standard single plate over time.

The second ring of lumber across the top of the walls fixes that completely.

For the grill opening specifically, the sources differ in approach. One route builds that entire zone from wood and relies on cement board covering for heat protection.

The other swaps in metal studs for the immediate surround. The metal costs more per piece and needs different fasteners, but it removes the combustion question entirely.

For a weekend build with a few hundred in materials, treated lumber plus cement board sheathing covers the requirement without the specialty run to a second supplier.

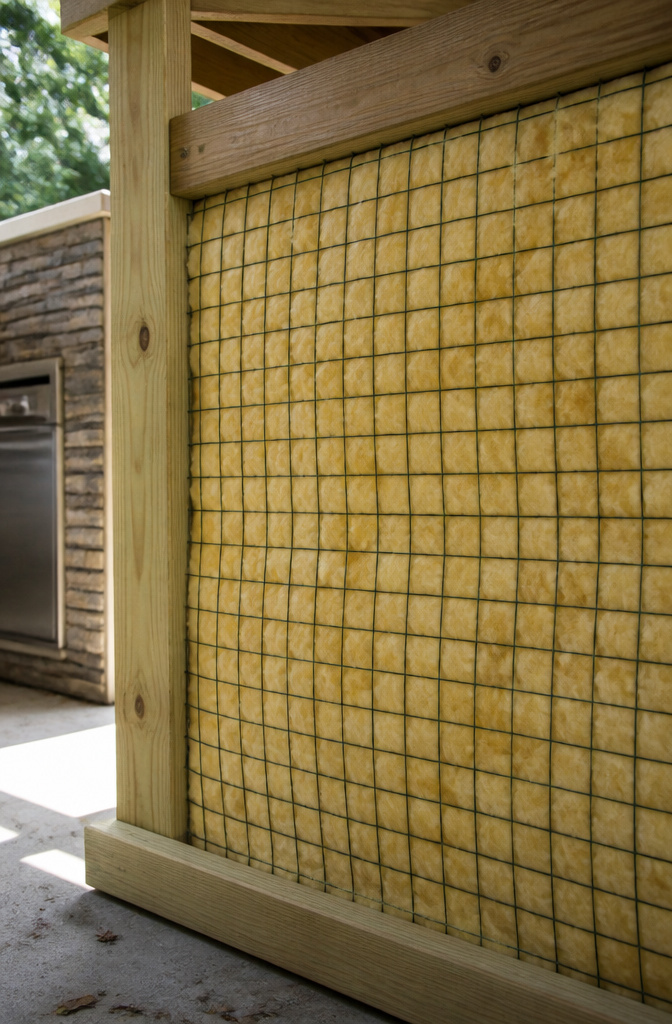

3. Insulate With Fire-Retardant Barrier

Heat wraps around a grill in ways the frame alone won’t handle. Fire-retardant insulation stuffed behind wire mesh creates the buffer that keeps the surrounding structure from taking on temperature it was never meant to hold.

I learned this after watching a neighbor’s island siding warp across two seasons, the plywood behind it cooked soft enough to dent with a thumb.

The mesh keeps the insulation in place where vibration and wind would otherwise let it sag or bunch, leaving gaps exactly where the heat concentrates.

Without that steady barrier, the concrete board and finish become the only line of defense, and both will eventually crack under repeated cycling from ambient to grilling temperature.

The cost of the insulation and mesh runs modest against the whole build, but skipping it trades a Saturday afternoon of careful fitting for a structure that weakens where you cannot see until something gives.

Long-term safety here means the island survives its own purpose, year after year, without becoming the project you rebuilt once and then quietly stopped using.

4. Frame the Grill Opening With Metal Studs

Metal 2×4 studs frame the grill opening in my build, not wood. The manufacturer instructions for most built-in units warn against placing combustible framing directly against the appliance, and even pressure-treated lumber is still combustible.

Heat radiates through the cutout for hours after the burgers are done, and that steady exposure warps wood and degrades the treatment over a season or two.

I integrated the metal by cutting it 3½ inches wide to match the wood studs in the rest of the island, then tied the two frames together with short lengths of track screwed top and bottom.

The joint sits outside the grill manufacturer’s required clearances, so the transition from metal to wood happens where temperatures stay reasonable.

Leave a 1-inch air gap between the metal and the grill shell unless your specific unit ships with an insulated jacket that allows tighter spacing.

The metal costs more per foot and needs tin snips or a metal-cutting blade, but in this zone it removes the worry. Everywhere else, standard lumber still makes sense.

5. Sheathe in Concrete Board

Concrete board is the skin that turns a lumber frame into something a grill can actually sit against without becoming a fire statistic.

I use it on every outdoor kitchen I build, and the difference from plywood or backer board is immediate: the stuff shrugs off direct flame, rain cycles, and the general abuse of a backyard that sees real use.

Fasten it with screws every 6–8 inches, not nails. Nails back out; screws stay put through expansion and contraction.

Hit every stud, and don’t trust adhesive alone behind a heat source. For seams, mesh tape and thinset mortar are the standard, same as a shower wall.

Skip the tape and you’ll see hairline cracks inside a season, especially if your island gets afternoon sun on one face and shade on another. The mud bed doesn’t need to be pretty here; it’s a substrate, not a finish.

Keep it flat, let it cure, and move on to the next layer.

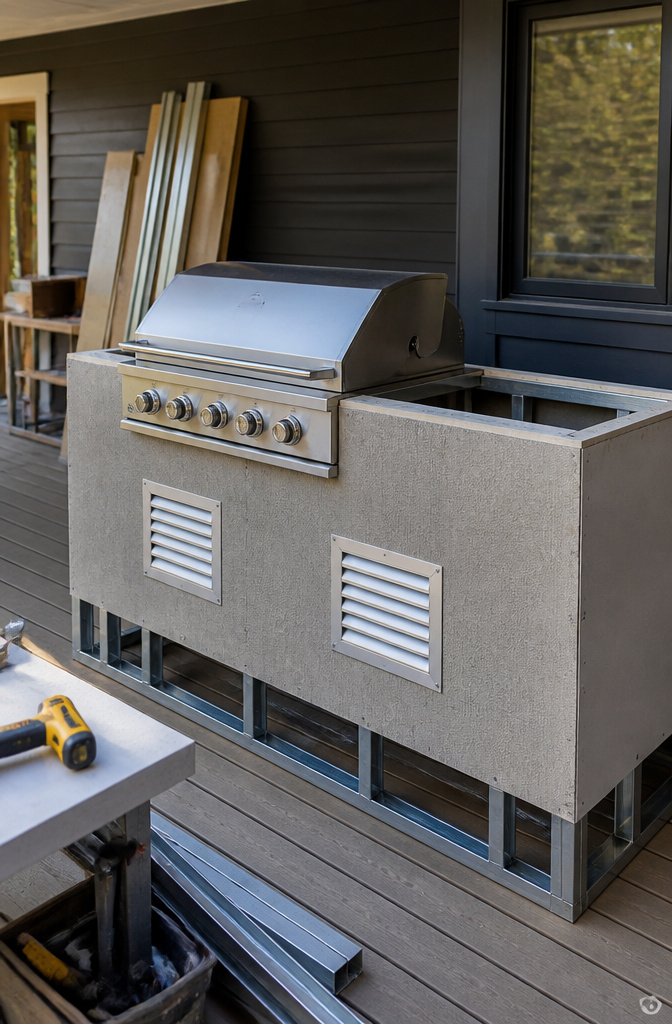

6. Add Ventilation for the Grill

A built-in grill needs ventilation below the unit as well as above it, especially with LP gas, since propane is heavier than air and will settle in the lowest part of the island if it leaks.

Natural gas rises, but both fuels need airflow to keep heat from building up inside the cavity and stressing the connections.

Wood framing makes this non-negotiable. Combustible framing has to stay separated from the grill according to the manufacturer’s clearances, and that includes the vent openings themselves.

Do not butt the grill box directly against pressure-treated studs without checking whether your specific model requires an insulated jacket and exactly how much air gap it calls for.

Placement follows the fuel type. With LP, vents low on opposite walls let any pooling vapor escape before it reaches ignition height.

With natural gas, low vents still help the burner breathe and keep the cabinet from turning into an oven.

The grill manual will list minimum square inches of opening; if it does not, the general rule is to match the area of the exhaust opening at the rear and add a second path at the base.

I cut mine into the concrete board sheathing before the finish went on, using simple louvered aluminum covers meant for foundation vents.

They cost a few dollars, they do not clog with stucco texture, and they are easy to swap if a hose ever weeps in the night.

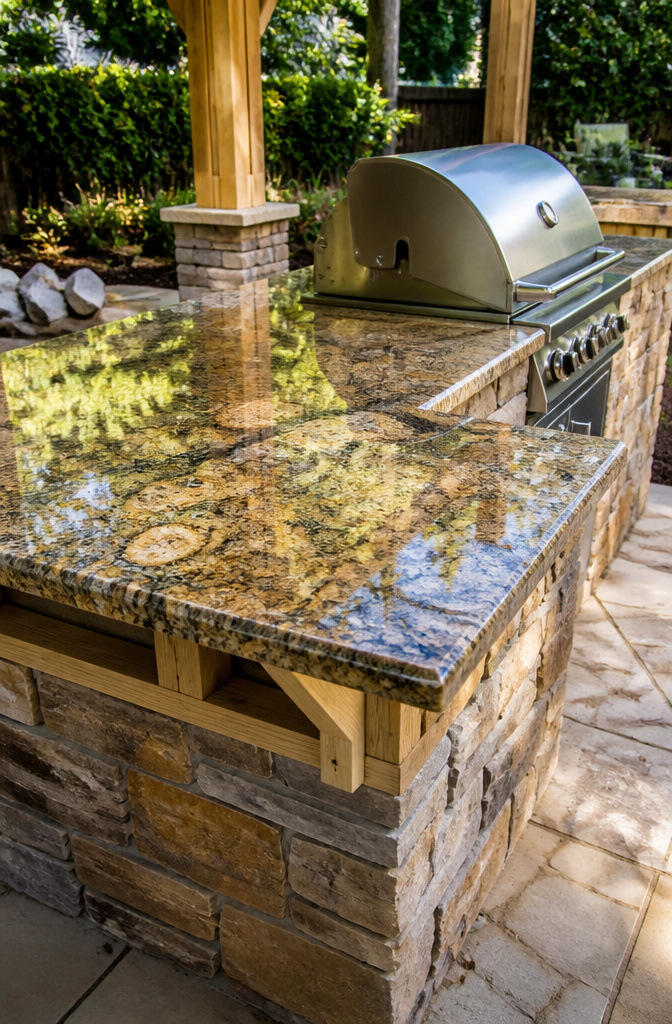

7. Set the Countertop

Concrete sends cold straight into your hands and traps grease in every pore you do not seal.

For a grill island, the countertop needs to wipe clean after a Saturday burger night and shrug off a spark from the chimney starter.

Tile on concrete board works and costs little, but the grout lines stain almost immediately with rendered fat.

Solid surface remnants from a kitchen remodel look sleek in year one; the UV turns them chalky by year three and the span sags if the framing underneath hits four feet without a brace.

Granite scraps from a local stone yard solve both problems, though the weight demands an extra cross-member mid-span.

I skip anything that needs resealing twice a season because I will not do it, and the countertop fails the moment maintenance becomes a wish instead of a habit.

Most yard quotes for a 2 x 4 foot piece run between what you paid for the grill itself and double that; bring your frame dimensions and ask them to cut the sink or grill drop-in while their saw is running.

If the bottom of the stone sits more than a foot above the enclosure, bolt a shelf of angle iron inside the frame before the top goes on.

The stone does not flex, but your lumber does, and a dropped six-pack will tell you where the weak point was.

8. Apply the Finish

Brick veneer, stone veneer, stucco, and tile are the finishes that actually survive on a grill island, and the choice between them depends on whether your winter includes freeze-thaw cycles.

Stucco and tile crack when water gets behind them and expands; in the Northeast and Midwest, that means stone or brick veneer with a proper drainage gap is the safer bet.

The Southwest gets away with more options because arid air keeps moisture out of the wall assembly entirely.

Matching the house exterior sounds obvious, but the cement board underneath needs to be rated for exterior use and the fasteners need to be stainless or galvanized.

Rust behind the finish is what kills these islands, not the surface you see. A prefab frame wrapped in cement board saves the structural work, but the finish application still takes real skill to get right.

If you have never set tile or floated stucco on a vertical surface, practice on a small panel first.

The square, level frame from the manufacturer helps, but it does not fix a wavy tile job or a cracked mud coat.

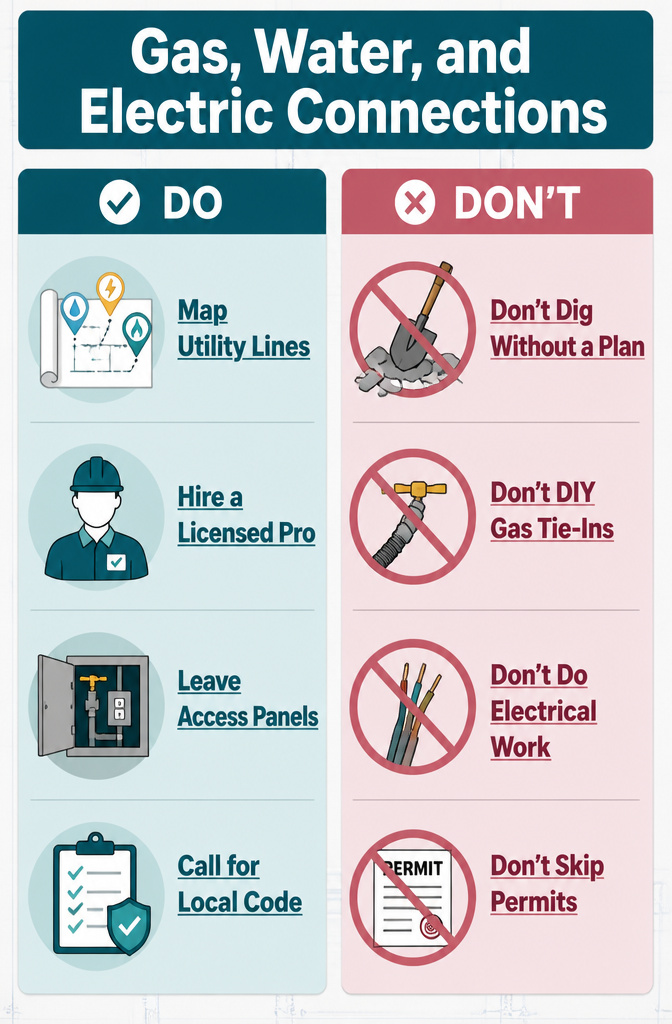

9. Connect Gas, Water, and Electric

Utility lines should get mapped before you pick a single appliance.

Natural gas grills need a gas line stubbed out to the island’s footprint, sinks need both pressurized supply and a drain route, and any refrigerator, ice maker, or overhead lighting needs an outdoor-rated outlet or junction.

I drew my layout twice: once with everything I wanted, then again after walking the patio with a plumber and an electrician to mark what the existing slab could actually reach without tearing up half the yard.

Hire a licensed pro for gas and electrical tie-ins. Local code almost always requires it, and permits pulled by a homeowner on those trades get rejected in most jurisdictions I checked.

What you can handle yourself is the planning: measuring final appliance locations so the pro knows exactly where to stub lines, leaving access panels in the framing for shut-off valves and junction boxes, and sequencing the work so concrete board and countertops don’t block later inspection.

Propane drops some of this complexity if natural gas isn’t an option, though you’ll still want an electrician for any outdoor receptacles.

10. Add Lighting and Seating

Task lighting over a grill island is one place where catalogs and reality split wide open. Those magazine spreads show polished sconces throwing a perfect cone of light onto a steak.

What they do not show is a cook standing mid-flip, blocking that cone entirely and casting a shadow over the grates.

After installing and moving two different fixtures on my own build, I settled on a low-voltage LED strip tucked beneath the counter overhang, running the full depth of the cook surface.

It lights the food from the front, so the body does not eclipse the beam, and the 12-volt draw means no conduit to bury or electrician to hire in most jurisdictions.

Ambient lighting is where I spent money I should not have. String bulbs across the pergola looked romantic in the planning stage and turned my patio into a parking lot of glare once the sun went down.

Reflections off the countertop made the space feel clinical, not inviting. Low-voltage bollard lights at ground level, aimed into planting beds, give the glow without the bulbs in your face.

The same transformers run both strips and bollards, so the wiring stays simple.

Seating built into the island itself saved space but cost comfort. A fixed bench at counter height sounds efficient until a tall guest folds at the knees or a short one perches like a bird.

I swapped mine for freestanding stools with backs. The stools tuck under when the grill is the focus, and they move to face the fire pit when the evening shifts.

Materials That Survive Outside

The grill head you drop in had better be 304 stainless steel, or you will watch it pit inside two seasons.

A magnet will tell you the difference if a seller’s label does not: 304 is not magnetic, while the cheaper 400-series grade is.

• Pressure-treated wood for the frame is what most guides list first, and it is where I would spend, not save. The $40 difference between standard and ground-contact rated lumber disappears fast when the frame starts warping the tile above it.
• Metal framing skips the rot and termite risk entirely, though you trade the forgiving give of screws in wood for a drill and self-tappers that strip if you hurry.
• Cement board is the non-negotiable layer between the frame and anything flammable: the grill opening, the side burner gap, the back panel if you are close to siding.
• Stucco, tile, or stone veneer for the finish all share one weakness the Southwest can ignore and the rest of the country cannot. Moisture that gets in past a hairline crack will freeze, expand, and rust the frame inside. Applied finishes on cement board need a weather-resistant barrier behind them, not just the board itself.
• A grill cover is not optional backup but part of the material system. It is the cheapest way to cut the rain that finds those cracks.

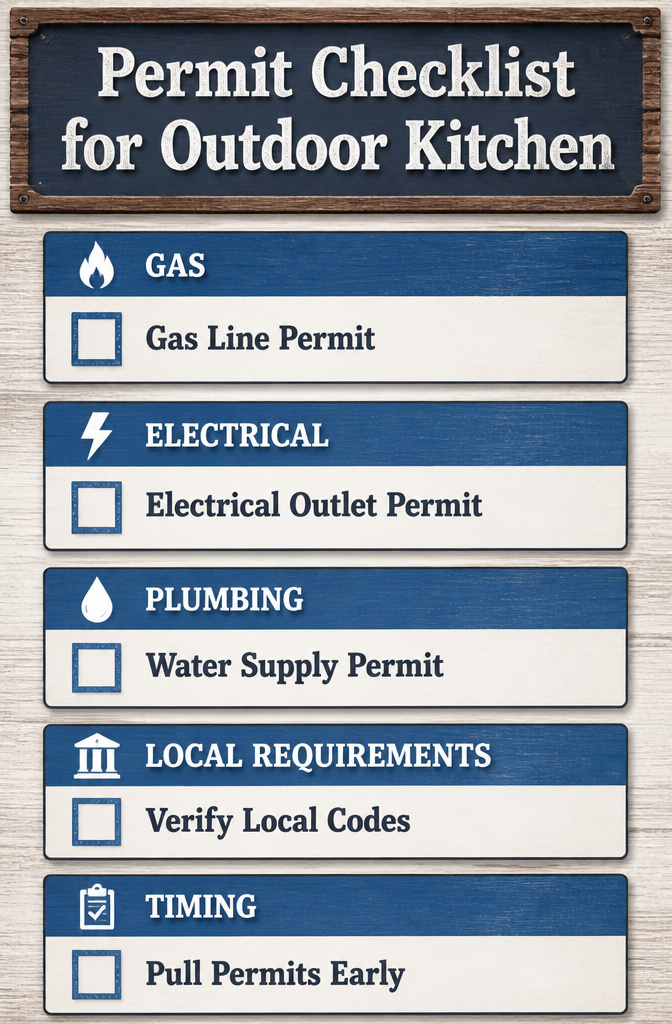

What Permits to Pull

Gas lines, electrical outlets, and water supply for a sink each trigger their own permit category, and local code decides whether weekend work crosses the line into licensed-trade territory.

In most jurisdictions, homeowners can pull permits for basic framing and finishing, but gas lines almost always require a licensed pro on the paperwork.

Electrical for outdoor-rated outlets sits in a gray zone: some areas allow owner-installation with inspection, others demand an electrician’s stamp.

The way to know is to call your city or county building department with your appliance list in hand.

Ask specifically about outdoor kitchen grill islands as permanent fixtures, because some departments treat them like sheds and others like house additions.

Skipping this step means a failed home inspection later, or worse, an insurance denial if an uncapped line or ungrounded outlet causes damage.

Pull permits before the concrete pad goes in, because inspectors want to see underground work before it gets buried.

Budget Ranges for Real Builds

A $2,000–$5,000 DIY grill island gets you a basic station with the grill head and limited counter space; that’s the entry point for anyone working weekends with their own hands.

Push to the mid-range at $5,000–$15,000 and you add storage, prep space, and basic appliances. Premium builds run $15,000–$30,000-plus for large layouts, refrigeration, sinks, side burners, and finished surfaces that look built by a crew.

The gap between what sources call "simple" and what weekend builders actually attempt matters here.

At a few hundred to a thousand dollars, you’re not building a fixed island; you’re maybe refurbishing a cart, adding a side table, or laying pavers for a grill pad.

The numbers above assume you are buying the grill itself, which eats most budgets first.

Build type	Cost range	What it buys	Weekend realistic?
Basic DIY grill island	$2,000–$5,000	Grill, small counter, minimal storage	Possible if skilled
Mid-range outdoor kitchen	$5,000–$15,000	Grill, counters, storage, basic appliances	Stretched across several weekends
Premium outdoor kitchen	$15,000–$30,000+	Large layout, refrigeration, sink, premium finishes	No; this is weeks or hired labor
RTA outdoor kitchen kit	$2,000–$10,000+	Pre-designed components, faster assembly	Most realistic for limited time

Pre-designed RTA kits sit in an interesting middle space: faster to assemble but still requiring the same utility connections.

Where I’d put money first is the grill itself, then the structure that keeps it level and dry; everything else can follow in later seasons.

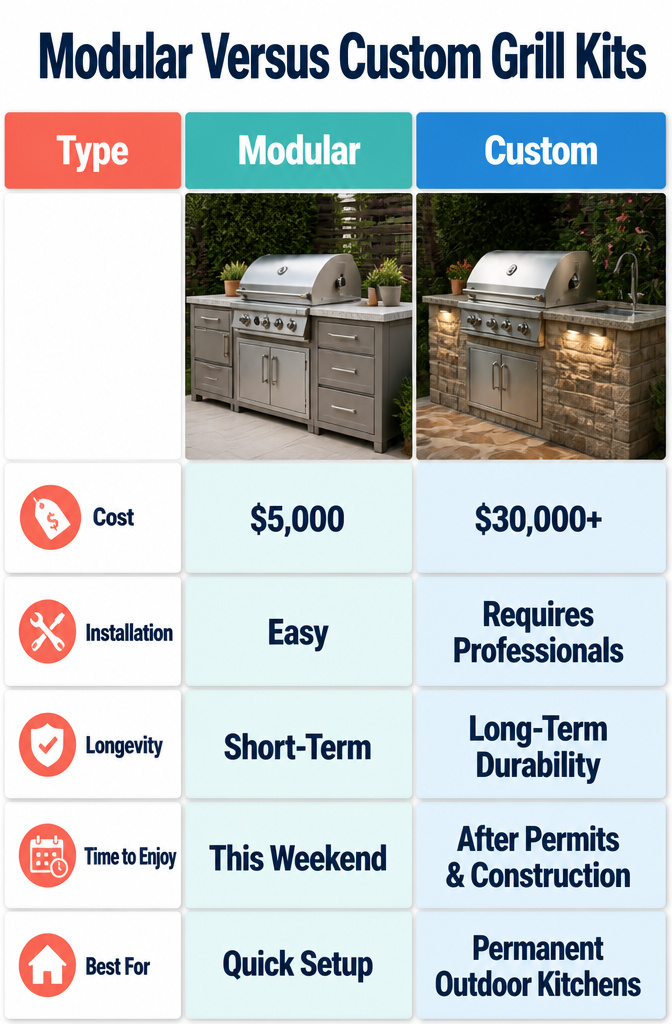

Modular Kits Versus Full Custom

A modular grill station runs about five thousand dollars on the low end and lets you stack cabinets like Lego until the layout works.

Some kits ship fully assembled, and every part is already compatible, which means you are grilling the same weekend instead of calling in a plumber to check your gas line routing.

The downside hits three years out, when the cabinet faces start peeling and the hardware rusts hard.

Custom framing with metal studs or concrete block can easily climb toward thirty thousand once you add appliances, utilities, and finishes.

You also pull permits for gas and electrical, and you are doing the math on burn clearances and ventilation yourself. For a first-home owner with a rented miter saw and two Saturdays, that math eats the whole project.

Renters should skip both and look at nothing permanently plumbed, since proper winterization and drainage are not happening on a place you do not own.

If you already own and you are deciding where to park the budget, the real choice is whether you need that island to outlast your mortgage. Modularity trades longevity for speed; full custom trades your summer for permanence.
